Dyson 967040-01 Brush Bar Assembly – 1 Short & 1 Long Tab

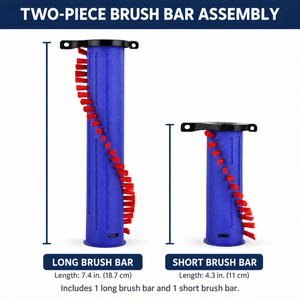

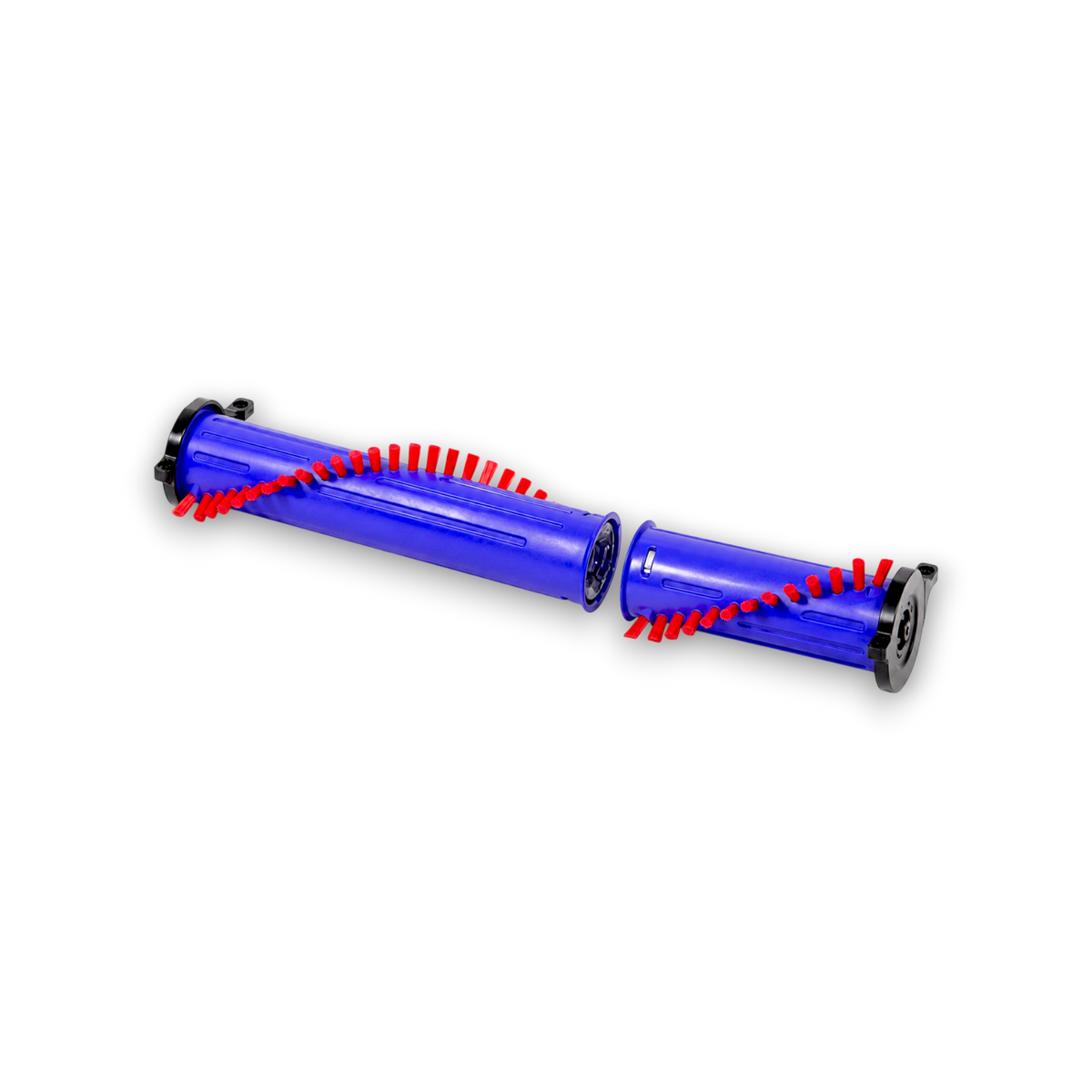

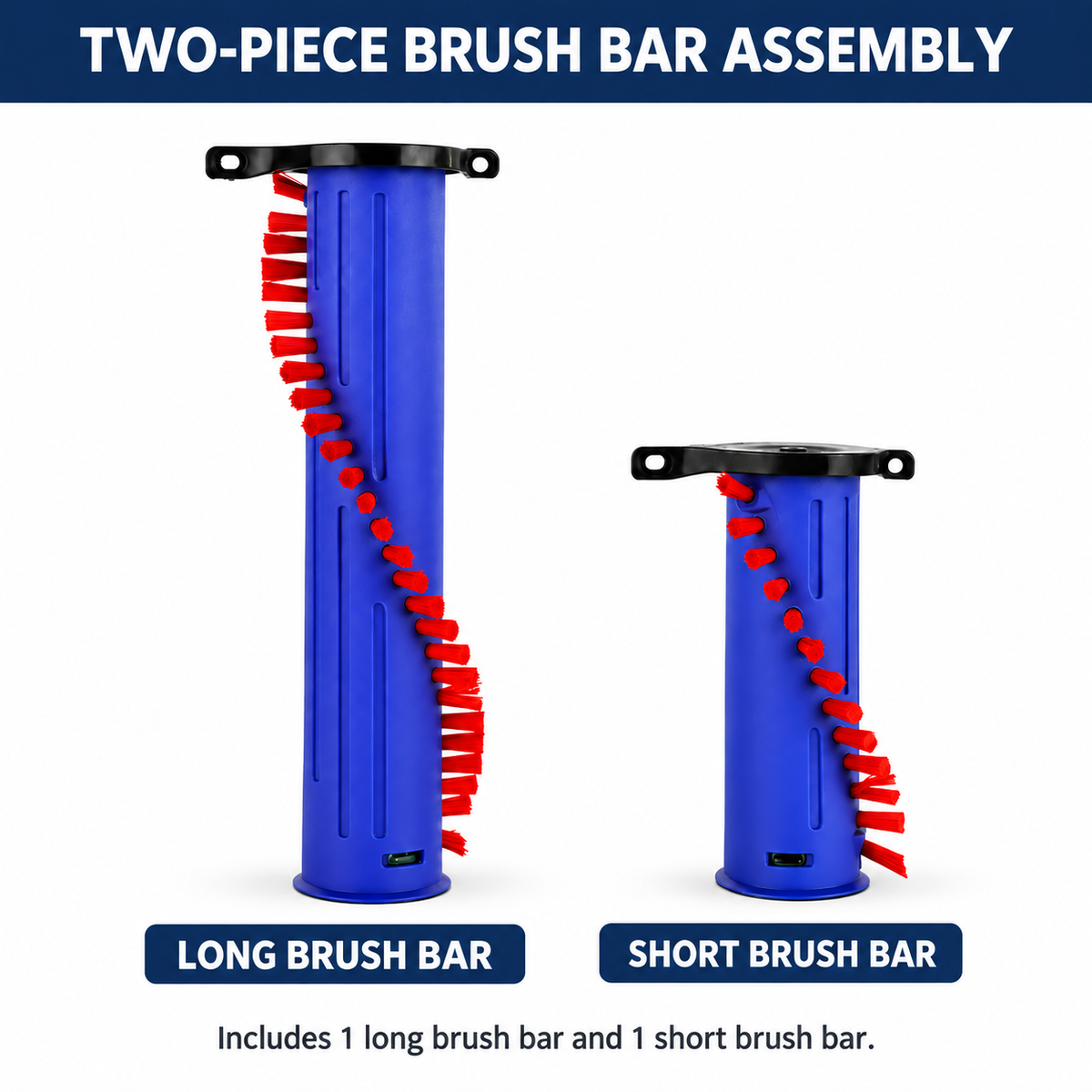

Dyson 967040-01 Brush Bar Assembly is designed for select Dyson upright cleaner heads that use the newer one-short-tab and one-long-tab configuration. The two-piece assembly includes one long brush bar and one short brush bar, with blue roller surfaces, red bristles, and black end components. When installed in the cleaner head, the brush bars rotate against the floor surface to help agitate carpet fibers and guide dirt and debris into the vacuum airflow path.

This brush bar assembly is also commonly called a brushroll or brush roll. It is used with select Dyson UP30, UP20, UP19, UP14, UP15, UP16, and UP13 upright cleaner heads that have one short black tab and one long black tab. The tabs are the black plastic end pieces located at the outside ends of the brushbar assembly. They fit into the cleaner-head mounting points and help secure the bars in position. The blue roller length alone is not enough to confirm fitment - the black tab configuration must also match your existing brushbar.

To confirm fitment, compare the Dyson 967040-01 Brush Bar Assembly shown here with your current brushbar and cleaner head.

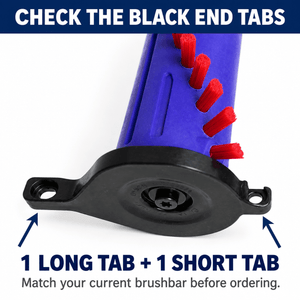

Before Ordering: Check the Black End Tabs
Compare both black end tabs on your current brushbar with the product images. This assembly fits brushbars with one short black tab and one long black tab. It does not fit brushbars with two short black tabs. Please verify your complete Dyson model number, brushbar style, and existing part number before ordering. If you are unsure, send us a photo of your existing brushbar and vacuum model number.

Dyson names, model names, and part numbers are used only to identify fitment.

Fitment & Compatible Models

Fits Dyson series: Dyson Ball, Dyson Ball Animal

Fits Dyson models: Dyson Ball Allergy Exclusive, Dyson Ball Allergy Extra, Dyson Ball Animal Pro+, Dyson Ball Animal, Dyson Ball Complete, Dyson Ball Multi Floor Exclusive, Dyson Ball Multi Floor, Dyson Ball Total Clean Origin, Dyson Ball Total Clean, Multifloor, and Dyson Ball Allergy+, UP30, UP20, UP19, UP14, UP15, UP16, and UP13

Confirm your existing brushbar has one short black tab and one long black tab before ordering.
